Flexibly designed system telephone
for the MDS Amiba communication platform

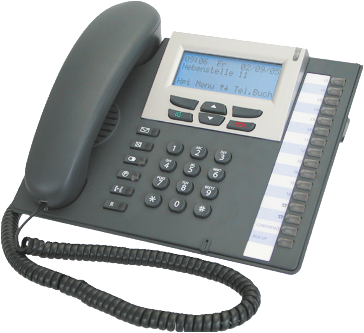

High-performance IP-system telephone for maximum user-convenience OPERAfone Executive IP

The OPERAfone Executive system telephone provides with its easy handling and its 22 freely programmable function keys instant access to the most important functions.

With the help of the 16 illuminating function keys the user has a best possible overview on the telephony status of all connected extensions. The function keys' 2-colour LED's as well as the large 4-row and blue back-lit LC-display provide excellent user convenience to oversee incoming and outgoing traffic and, when needed, to pick up or to pass on calls.

The Operafone Executive supports with its standardized headset-interface for many commonly available headsets frequent telephone users or busy and louder work environments (e.g. open-space offices). The integrated 2-port-hub provides a connection to both, a PC and the LAN.

The integrated AES-encryption allows a remotely located homeworker to establish a secure connection to the Opera-system without a costly VPN-infrastructure, giving him full access to all functions of an extension, including busy-lamp field and other important features. The user only requires a fixed IP-address of the Opera-system.

The two-angle standing socle (with tilt angles 20°/40°) as well as the wall-mounting option further compliment the usage options of this allround device.

Features

  • IP-system telephone
  • 6 programmable function keys
  • 2 softkeys
  • 2 navigation keys
  • Handsfree key
  • On-Hook key

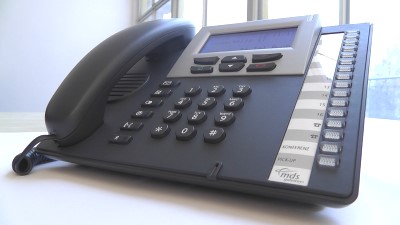

  • 16 programmable destination/function keys with 2-colour LED
  • 4-row blue back-lit display
  • Intuitive menu guidance via display
  • Handsfree mode
  • Paging function
  • 2 LAN-interfaces
  • AES-encryption for remotely connected IP-system telephones
  • Headset-interface

Facilities

  • Intuitive menu guidance via display
  • Handsfree mode
  • Paging function
  • 2 LAN-accesses
  • Standardized Headset-interface for
    many customary headsets
  • AES-encryption for remotely connected IP-system telephones
  • 16 programmable extension/function keys with 2-colour LED's

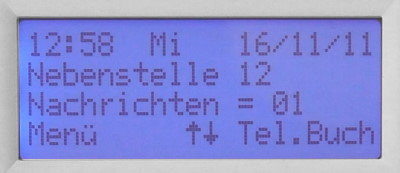

  • Large LC-Display (85 x 34 mm)
  • Blue back-lit
  • 4 rows
  • 20 characters
  • Adjustable contrast
  • 2 softkeys

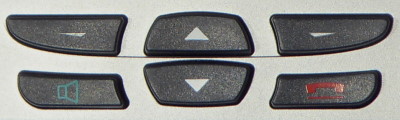

  • 2 navigation keys
  • Handsfree key
  • On-Hook key

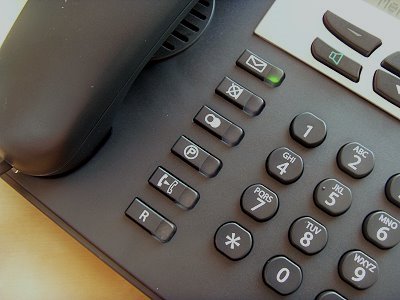

6 programmable function keys, configured with :
Message waiting signalling
Mute
Redial
Park
Call transfer
Hold

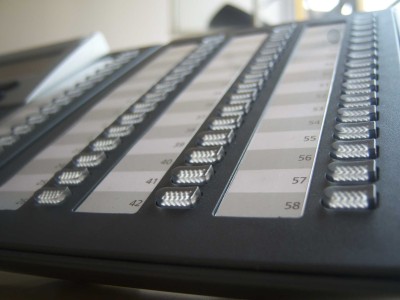

By connecting the DSSS-unit to the Operafone Executive, the amount of function keys can be increased to 64:

  • 48 2-colour LED (red/green)
  • Freely programmable as destination keys, busy-lamp field, call diversion, etc.
  • Ideal as switchboard or as secretary telephone
  • With its standardized headset-interface for many commonly available headsets, the Operafone Executive supports frequent telephone users or busy and louder work environments (e.g. open-space offices).

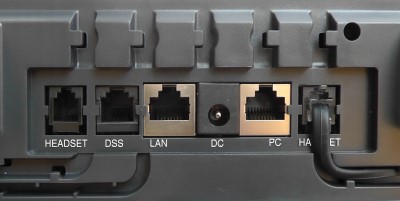

  • The integrated 2-port-hub allows the connection to both, PC and the LAN.
  • The voltage feed is optionally provided via the delivered power plug or over the Power-over-Ethernet (PoE)-cable.




Collaborative communications made easy – by MDS Amiba.
